Electrical Panels Explained: Types, Components, Installation, and Maintenance

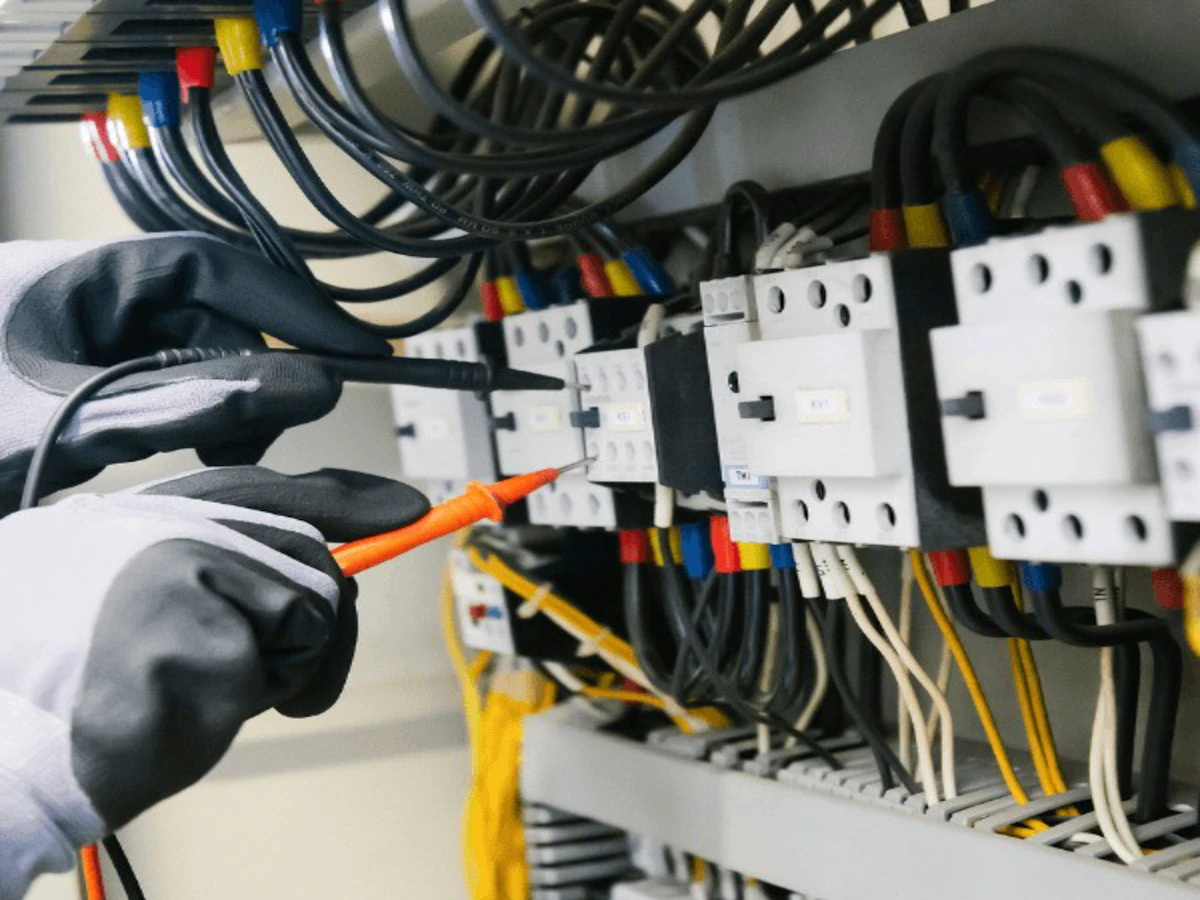

When you open an electrical panel, you'll see a wall of breakers, bus bars, and wiring. If you've ever wondered what keeps it all safe, you're not alone.

I spent years studying power electronics and working directly with electrical boards, and one thing became clear early on: most guides either oversimplify panels into "the box with switches" or gives readers multiple code references without explaining why any of it matters.

This guide sits in between: practical, accurate, and written from real experience working with these systems.

An electrical panel, also called a distribution board, breaker box, or load center, is a box where incoming power splits into individual circuits that feed your outlets, lighting, HVAC, and major appliances.

Build it undersized, poorly maintained, or with mismatched components, and everything downstream inherits that risk. Build it right, and it becomes the quiet backbone of a building's entire electrical system.

What an Electrical Panel Actually Does

Think of a panel as a traffic controller for electricity. Power comes in from the utility or a generator, or a solar inverter at a certain voltage and amperage, and the panel's job is to divide that supply into smaller, protected branch circuits.

Each circuit gets its own overcurrent protection device - a breaker or fuse - sized to match the wire gauge and the load it serves.

The reason this division matters isn't just organizational. If a circuit in a building develops a fault, such as a short, an overload, or ground fault, the panel is designed to isolate that fault to one circuit instead of letting it spread through the entire system or start a fire.

That containment function is the whole point of the panel's existence.

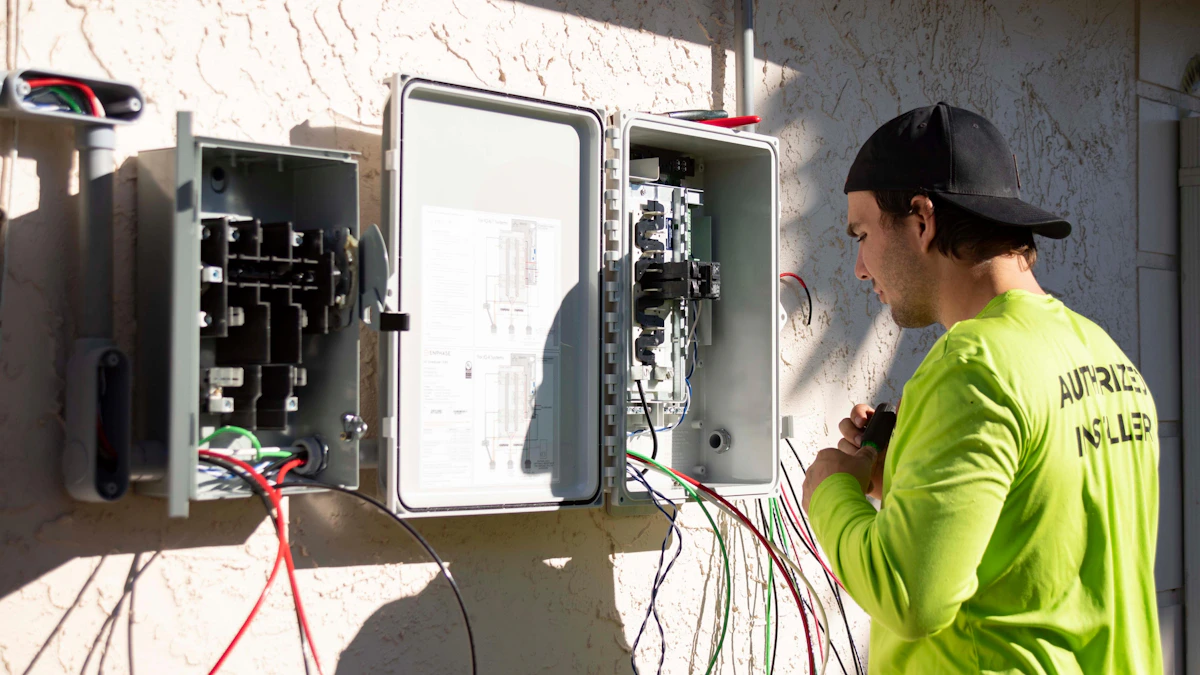

Types of Electrical Panels

Not all panels serve the same role, and mixing up their functions is one of the most common mistakes I see in field troubleshooting.

Main service panel (main breaker panel)

This is the primary entry point for utility power into a building. It contains the main disconnect, a large breaker that can shut off all power to the structure, along with the branch breakers for individual circuits. Everything else in the building's electrical system traces back to this panel.

Sub-panel (distribution panel)

A sub-panel doesn't connect directly to the utility. Instead, it's fed from the main panel through a dedicated feeder circuit, and it distributes power to a specific area such as a detached garage, finished basement, an addition. Sub-panels are common when the main panel runs out of breaker space or when a load center closer to a group of circuits reduces wire runs.

Main lug panel

This looks similar to a main breaker panel, but it has no main disconnect built in. Instead, it relies on an upstream breaker, often in the main panel or at the meter, to provide disconnect protection. For that reason, main lug panels are frequently used as sub-panels.

Motor control center (MCC) panels

In industrial and commercial settings, MCCs house multiple motor starters, overload relays, and disconnects in a single enclosure, letting facilities manage several motor-driven loads such as pumps, compressors, conveyors from one centralized point. This is where a power electronics background actually pays off, because motor starting current and thermal overload behavior directly shape how these panels are sized.

Smart panels

Newer to the residential market, smart panels integrate circuit-level monitoring, remote breaker control, and often software-based load management. They're increasingly paired with solar and battery storage systems to manage which circuits draw from the grid versus stored energy during an outage.

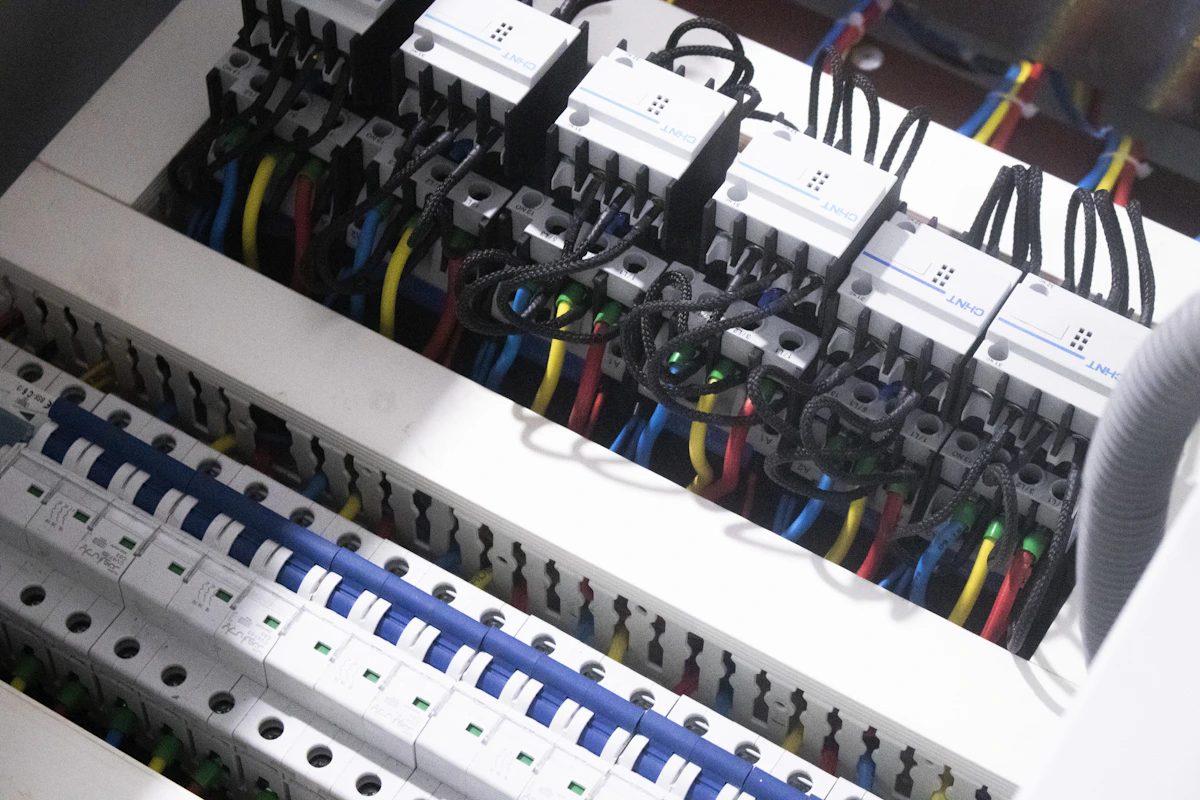

Core Components Inside a Panel

Every panel, regardless of type, is built around a handful of core parts, and understanding how they interact is what separates a real diagnosis from guesswork.

The bus bar is the metal strip, typically copper or aluminum, that runs through the panel and distributes power to each breaker. Breakers snap directly onto the bus bar, and the bus bar's current rating, not just the main breaker's rating, sets the panel's true capacity.

Circuit breakers are overcurrent protection on devices that trip when current exceeds a safe threshold, whether from an overload or a short circuit. Standard breakers protect against overcurrent only. GFCI breakers add protection against ground faults by detecting imbalances between hot and neutral current, which is why they're required near water sources. AFCI breakers detect the electrical signature of arcing faults, which are a leading cause of electrical fires in older wiring, and are now required in most living spaces under current code cycles.

The neutral bus bar provides a return path for current back to the source, while the ground bus bar provides a safety path for fault current to travel to earth, tripping the breaker rather than energizing a metal enclosure or appliance chassis. In main panels, neutral and ground are bonded together at one point; in sub-panels, they're kept separate, with grounding handled through a separate ground wire back to the main panel. This distinction trips up a lot of people doing their first sub-panel install, and getting it backwards creates a genuine shock hazard.

The main disconnect (when present) lets you de-energize the entire panel in one motion, which matters both for emergency shutoff and for safe maintenance work.

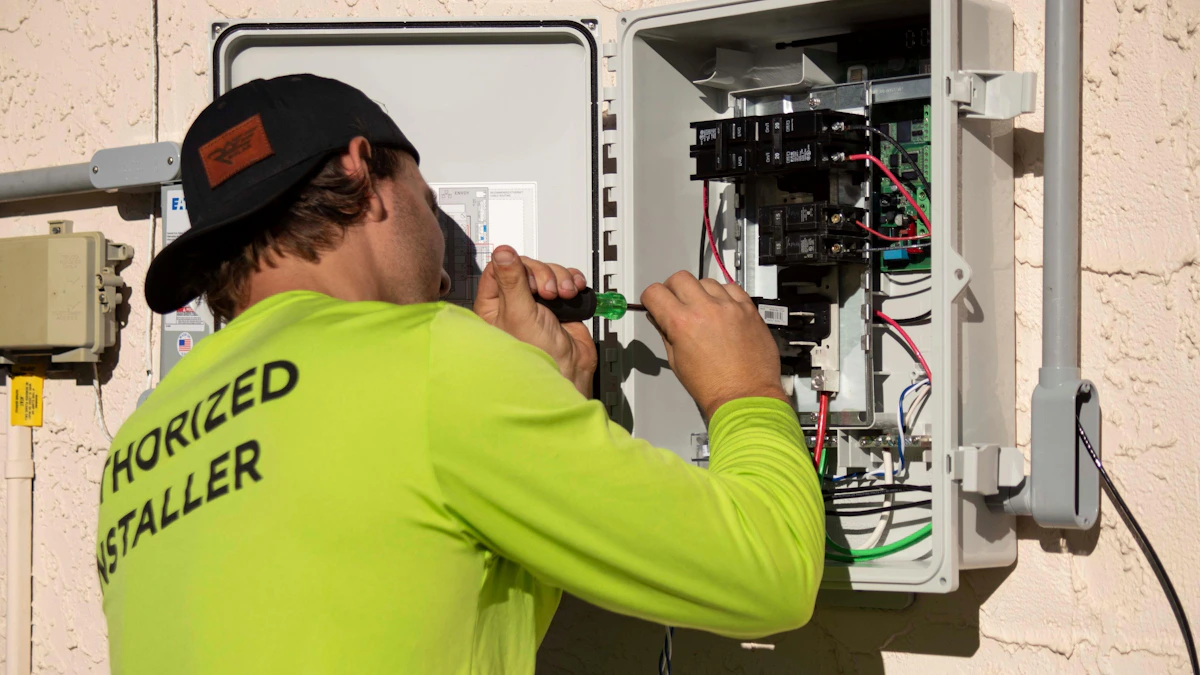

Installation Considerations

Panel installation is one of those tasks where the visible work - mounting a box and running wire - is the easy part. The sizing and planning decisions upstream are where experience actually shows.

Load calculation comes first. Before selecting a panel, you need to total the connected load - general lighting and receptacles, dedicated appliance circuits, HVAC, and any large single-phase or three-phase equipment - and apply the appropriate demand factors from the relevant electrical code. Undersizing here is the single most common long-term problem I've seen; a panel that is adequate at move-in becomes a bottleneck the moment someone adds a workshop, an EV charger, or a heat pump.

Panel location matters more than people expect. Codes typically require clear working space in front of the panel, commonly 30 inches wide and 36 inches deep, though this varies by jurisdiction, along with adequate headroom, and accessibility without needing to move stored items or climb over obstacles. Panels also shouldn't be installed in bathrooms, clothes closets, or above stairs.

Wire sizing has to match both the breaker rating and the panel's terminal ratings. A breaker rated for 60°C or 75°C terminations, paired with wire insulation rated differently, creates a mismatch that can lead to overheating even when the circuit is technically "within spec" on paper.

Grounding and bonding deserve particular attention because they're invisible when done wrong. A missing or undersized grounding electrode conductor, or a bonding jumper installed in the wrong location, won't show up as an obvious problem — until a fault occurs and the protective path isn't there to clear it.

Permits and inspections aren't just paperwork. A licensed inspector catches exactly the kinds of subtle errors described above, and skipping this step on a panel upgrade is one of the more common ways homes end up with hidden electrical hazards that surface years later, often after a change of ownership.

Maintenance Tips From the Field

Panels don't need constant attention, but they do need periodic, deliberate checks, and most of the failures I've seen trace back to maintenance that never happened rather than to bad components.

Do a visual inspection **every six to twelve months. Look for discoloration or scorch marks around breakers, which usually indicate a loose connection generating heat. Check for a burning or hot-plastic smell near the panel, which should never be present and warrants immediate investigation. Listen for buzzing or crackling sounds, which often point to a loose bus bar connection or a failing breaker.

Check for corrosion, especially in coastal or humid environments and around the neutral and ground bus bars, where corrosion increases resistance and generates heat over time.

Test breakers periodically by manually cycling them off and on. A breaker that feels stiff, doesn't seat firmly, or fails to reset cleanly is a candidate for replacement rather than continued use.

Have connections torqued to spec during any professional service visit. Thermal cycling - panels heating under load and cooling when idle - gradually loosens screw terminals over time, and re-torquing to the manufacturer's specified value is one of the most effective, least glamorous maintenance tasks available. This single step prevents a disproportionate share of the hot-connection failures I've encountered.

Keep the panel schedule accurate and updated. It sounds trivial, but an inaccurate panel schedule turns a five-minute troubleshooting job into an hour of trial and error, and increases the odds of someone working on a "dead" circuit that's actually still live.

Avoid double-tapping breakers that aren't rated for two conductors. It's a common shortcut when a panel runs out of space, but most breakers are only listed for a single conductor per terminal, and doubling up creates an unreliable connection prone to arcing.

Finally, don't ignore an aging panel just because it "still works." Panels from certain manufacturers and eras have documented reliability issues, and panels running near or beyond their rated capacity age faster under sustained thermal stress. If a panel is decades old, undersized for current loads, or shows recurring nuisance tripping, a proactive upgrade is usually cheaper than the failure it prevents.

Conclusion

An electrical panel is deceptively simple on the surface: breakers, bus bars, and a metal box. But the engineering behind sizing, protection coordination, and grounding is where real safety margins are won or lost. Whether you're specifying a main service panel for a new build, adding a sub-panel for a workshop, or just trying to understand why a breaker keeps tripping, the underlying principles are the same: match the components to the actual load, respect the grounding and bonding requirements, and treat maintenance as a scheduled task rather than a reaction to a problem. Panels that get this kind of attention tend to run quietly for decades. Panels that don't tend to announce their problems at the worst possible time.

FAQs

1. What's the difference between a main panel and a sub-panel? A main panel connects directly to the utility service and contains the main disconnect for the entire building. A sub-panel is fed from the main panel through a dedicated circuit and distributes power to a specific area, without its own direct connection to the utility.

2. How do I know if my electrical panel needs to be upgraded? Common signs include frequent nuisance tripping, warm or discolored breakers, a panel that's still uses fuses instead of breakers, insufficient space for new circuits, or a rated capacity that no longer matches the building's actual load - for example, after adding an EV charger, heat pump, or workshop equipment.

3. Can I install a sub-panel myself? In most jurisdictions, panel work requires a licensed electrician and a permit, because errors in grounding, bonding, or breaker sizing create serious safety hazards that aren't always visible after the work is finished. Even experienced DIYers typically have this type of work inspected.

4. Why do breakers trip even when a circuit isn't overloaded? Nuisance tripping can result from a failing breaker, a loose connection generating heat, a shared neutral wired incorrectly, or a GFCI/AFCI breaker correctly detecting a fault condition that isn't obvious from the load alone. It's worth diagnosing rather than simply replacing the breaker with a higher-rated one.

5. How often should an electrical panel be inspected? A basic visual and functional check every six to twelve months is reasonable for most homes, with a more thorough professional inspection - including torque-checking connections - every few years, or immediately after any signs of overheating, burning smell, or unusual noise.

6. What's the difference between a GFCI breaker and an AFCI breaker? A GFCI breaker protects against ground faults by detecting current imbalances between the hot and neutral conductors, which is critical near water. An AFCI breaker detects the electrical signature of arcing, which is a common cause of electrical fires in aging or damaged wiring. Combination AFCI/GFCI breakers provide both types of protection in a single device.
